DIY Single Sign-On for SSH

3. Bootstrap a new host

Let's bootstrap an Ubuntu instance that will be our first ssh target host.

Note: Your CA will only issue host certificates for instances that are in its AWS account. This time around, grab this host User Data script for launching the new instance—filling in these variables:

• Your CA's URL (https://[CA hostname])
• Your CA's root certificate fingerprint

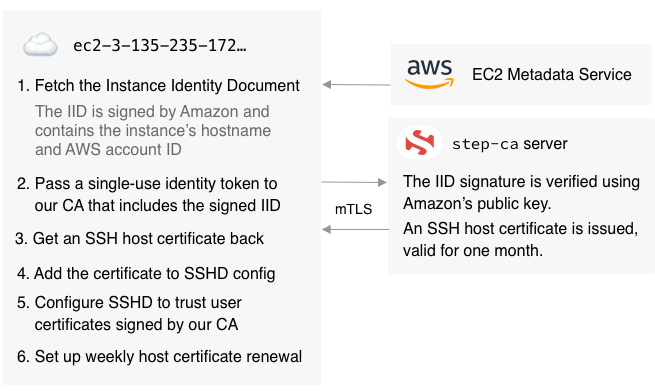

Here's what the User Data script will do:

So, we get a host certificate in exchange for a single-use token that contains the Instance Identity Document) and its signature.

About those IIDs... In case you've never played with IIDs, here's what one looks like:

$ TOKEN=`curl -X PUT "http://169.254.169.254/latest/api/token" -H "X-aws-ec2-metadata-token-ttl-seconds: 21600"` \
&& curl -H "X-aws-ec2-metadata-token: $TOKEN" –v http://169.254.169.254/latest/dynamic/instance-identity/document
{
  "accountId" : "8072125551212",
  "architecture" : "x86_64",
  "availabilityZone" : "us-east-2c",
  "billingProducts" : null,
  "devpayProductCodes" : null,
  "marketplaceProductCodes" : null,
  "imageId" : "ami-0fc20dd1da406780b",
  "instanceId" : "i-01bd292377d6d8fec",
  "instanceType" : "t2.micro",
  "kernelId" : null,
  "pendingTime" : "2020-03-11T23:18:12Z",
  "privateIp" : "172.31.46.150",
  "ramdiskId" : null,
  "region" : "us-east-2",
  "version" : "2017-09-30"
}

This bit of JSON is signed by Amazon. Here's the signature:

$ TOKEN=`curl -X PUT "http://169.254.169.254/latest/api/token" -H "X-aws-ec2-metadata-token-ttl-seconds: 21600"` \
    && curl -H "X-aws-ec2-metadata-token: $TOKEN" –v http://169.254.169.254/latest/dynamic/instance-identity/signature
c0p6ygyFNFxyjs/73QGCQN+7khkZBr6H5cP/gefBgAwe80GmSTNlQy68LBSQQYrQczv2aHTXj3xa
CFkaGE4GPYiAogCkywcnt5VAp3t176GQwVxqfmawTliPMs31dY7ZeZvixN/1uoe8x1pt0EXAMPLE

Sign in with your PEM key and make sure everything initialized properly. The output of your user data script is located in /var/log/cloud-init-output.log.

Create a user for yourself on the host

Create a new user on the host. Your username must match the user portion of the email address you'll use to sign in to Google. In my case:

$ sudo adduser --quiet --disabled-password --gecos '' carl

The host side of our setup is done! 🔑

4. Onboard a new user

Let's get you set up as the first user. On your local machine, run:

$ CA_URL=https://[YOUR CA].compute.amazonaws.com
$ CA_FINGERPRINT=[CA FINGERPRINT]
$ step ca bootstrap \
       --ca-url $CA_URL \
       --fingerprint $CA_FINGERPRINT

This will install your CA's root certificate on your machine and configure it. It creates two files: ~/.step/config/defaults.json (the config file for step), and ~/.step/certs/root_ca.crt (your root CA's TLS certificate).

Next, we can provision a user certificate for ourselves:

$ step ssh login [your email address] --provisioner "Google"

What does this command do?

1. It launches your system browser and starts Google's OIDC sign-in flow
2. After signing in, the ID token you get back from Google is sent to your CA
3. Your CA validates the Google token and issues an SSH certificate associated with your email address
4. The certificate is added to your SSH agent. Use step ssh list to see it, or step ssh list --raw | step ssh inspect to parse and examine it.

Finally, let's configure ssh to use our CA:

$ step ssh config

Here are the steps taken by step ssh config:

1. It fetches the CA's host public key—used to verify host certificates—and installs it into your SSH configuration. The entry looks like this (in ~/.step/known_hosts):

@cert-authority * ecdsa-sha2-nistp256 AAAAE2VjZHNhLXNoYTItbmlzdHAyNTYAAAAIbmlzdHAyNTYAAABBBHyWTo9TLDwhyLlHq2ANkjtSGLyJ3xPtfL+7faiV+YA0k4kLUc8cJ5rWFHdUShbwtkOsLhkqeDDXoFnH/C5BG+4=

2. It imports this unintrusive config block (in .step/ssh/config) into your ssh configuration:

 Match exec "step ssh check-host %h"
     ForwardAgent yes
     User carl
     UserKnownHostsFile "/Users/carl/.step/ssh/known_hosts"
     ProxyCommand step ssh proxycommand %r %h %p --provisioner "Google"

The Match exec block is only evaluated if the provided command returns true.

step ssh check-host goes up to your CA and asks if the hostname you're trying to SSH to has been given a certificate. If so, it returns true. We don't want CA-managed hosts to interfere with your sconfig for any other hosts.

The ProxyCommand directive delivers the Single Sign-on magic. step ssh proxycommand will check for your SSH certificate before attempting to connect. If it's missing or expired, it will run you through the OAuth OIDC flow and request a new certificate from your CA.

Note: A template on your CA defines this config block. If you want to change anything—for example, you may wish to remove the ForwardAgent directive—you can find the template in /etc/step-ca/templates/ssh.

Try it out!

We're ready to SSH to the target host you've set up. You can run SSH with -v to watch the handshake. Specifically, you should see something like:

debug1: Server host certificate: ecdsa-sha2-nistp256-cert-v01@openssh.com SHA256:KUwZbRewusotBbO4Wbrj1EpPexMqKEj0ZUr1Fvf41+g, serial 782
1790606781444805 ID "i-0fa7218db55ac0536" CA ecdsa-sha2-nistp256 SHA256:VIwnVtTJJwdUsjGaPyOS5yT1O/uxyxj0CQJd+Ce/w0M valid from 2020-03-2
3T16:23:32 to 2020-04-22T16:24:32
debug1: Host 'ec2-3-135-235-172.us-east-2.compute.amazonaws.com' is known and matches the ECDSA-CERT host certificate.
debug1: Found CA key in /Users/carl/.step/ssh/known_hosts:1
...
debug1: Offering public key: carl@smallstep.com ECDSA-CERT SHA256:mBQXA0znZvd+21hhvViUVEybzrO4x190xZftFXAYCFY agent
debug1: Server accepts key: carl@smallstep.com ECDSA-CERT SHA256:mBQXA0znZvd+21hhvViUVEybzrO4x190xZftFXAYCFY agent

Boom! You're in.

Tip: You can run step ssh hosts to ask the CA for a list of hosts that have been issued certificates.

Q&A

How do I register an existing host with the CA?

For Ubuntu 22.04 LTS hosts, the process is identical to bootstrapping a new host—just run your host launch script as root.

For other platforms, you may need to port the script to suit your situation.

Once you have all of your existing hosts up and running, you may want to adjust the instanceAge setting on the AWS provisioner on the CA. You'll see it in /etc/step-ca/config/ca.json. By default, an instance of any age can bootstrap itself. If you set it to, say, 5m, the CA will only accept IID tokens from instances less than 5 minutes old, as an extra measure of security.

Note: The Instance Identity token created in the script is a one-time token. You can't re-enroll a host, you can only renew its certificate. Why? Because any user on the host can access the IID at any time, and we don't want any user to be able to get a host certificate from the CA.

Can I use a different OAuth OIDC provider?

Sure! In the User Data script for the CA, you'll need to change the OAuth configuration endpoint URL, and change the name of your OIDC provisioner.

Can I use GCP or Azure hosts instead of AWS?

Yup! step-ca has provisioners for all three. You'll need to make some adjustments to your CA's configuration and host bootstrapping script. See step-ca's provisioner documentation for details.

My host is not on GCP, Azure, or AWS. Now what?

If you're not using one of the big three cloud providers, there's a different flow for getting a host certificate.

A combination of the ACME provisioner (the protocol used by Let's Encrypt) and the X5C provisioners can be used to sign an SSH certificate for a host. Add those two provisioners, then run this to get your host SSH certificate:

step ca certificate internal.smallstep.com internal.crt internal.key
step ssh certificate --host --x5c-cert internal.crt --x5c-key internal.key internal.smallstep.com internal

With the first command, the ACME HTTP challenge is validated by the CA, and the host is trusted and given an X.509 certificate. The second command uses that certificate to authenticate to the x5c provisioner, and get an SSH host certificate. Note that the x5c provisioner will let you get an SSH host certificate for any hostnames. (This is also true of the cloud provisioners; the IID is typically used to authenticate to the CA, not to constrain the certificate principals.)

Once you have the host cert, use the SSHPOP provisioner to renew it (as described above).

Can I use a bastion host (jump box)?

You can. First, get all of your hosts set up with host certificates. Then, you'll need to add the host CA key to known_hosts on your bastion:

$ CA_URL=https://[YOUR CA].compute.amazonaws.com
$ CA_FINGERPRINT=[CA FINGERPRINT]
$ step ca bootstrap \
          --ca-url $CA_URL \
          --fingerprint $CA_FINGERPRINT
$ mkdir -p ~/.ssh && echo "@cert-authority * $(step ssh config --host --roots)" > ~/.ssh/known_hosts

From there, just ssh to the bastion, then ssh to the internal hostname.

Can I change the SSH certificate duration?

Yes. By default they are valid for 16 hours. Under the claims object of the CA configuration (ca.json), for your OIDC provisioner, add the following keys to change the default:

"defaultUserSSHCertDuration": "720h",
"maxUserSSHCertDuration": "720h"

Will I get locked out of my hosts if my CA goes down?

You will, even though SSH and SSHD don't directly interact with the CA. The CA issues certificates and holds a database of hosts. Your users rely on that database to choose whether to try the certificate authentication path when connecting to a host.

One option here is to create a second, offline CA and store it on a USB stick somewhere safe, for emergency access, and set your host up to trust that CA in addition to your online CA. To generate an offline CA in /mnt/offline-ca:

export STEPPATH=/mnt/offline-ca
step init --ssh --no-db

Now, /mnt/offline-ca/certs/ssh_user_ca_key.pub is the offline SSH user CA key you'll need to append to your hosts' TrustedUserCAKeys file.

If you ever need to generate a certificate using this CA to sign in (as alice, for example), you'd run:

export STEPPATH=/mnt/offline-ca
step ssh certificate --offline --principal=alice alice@example.com my_key

The certificate will be added to your SSH agent and saved on disk.

Can I use hosts in multiple AWS accounts?

Sure. You'll need to add the account IDs to the CA's config file (/etc/step-ca/config/ca.json), and restart the CA server.

How do I remove a host from step-ca?

For now you'll have to wait for it to expire. When you terminate a host, the host appears in the step ssh hosts command until the host certificate expires. Host certificates expire in 30 days by default.

How might I add sudo support?

You can do this using agent forwarding and the pam_ussh pluggable authentication module.

What else can I do with my CA?

LOTS! Now that you have your very own private CA, you could set it up to issue TLS certificates for encrypting all of your internal traffic using mutual TLS. See Step Certificates Documentation to learn more about the CA, provisioners, configuration options, etc.

Wrapping up

With our basic setup, anyone in your Google organization will be able to get a certificate. They will only be able to access hosts on which they have accounts with usernames that match their Google email username.

If you want features like fine-grained mappings between users and hosts and automatic user provisioning, or if you simply don't want to manage your own CA server, check out our Smallstep SSH product. It's self-service and only $3/month per host in your infrastructure.
