Grafana for homelab monitoring—with mTLS!


Carl Tashian

Follow Smallstep

Now that I have a Tiny Certificate Authority in my homelab, I've started putting it to good use by securing as many local endpoints as I can with mutual TLS authentication. With mutual TLS (mTLS), both client and server authenticate to one another with certificates. Servers will only accept connections from clients that can offer certificates issued by my CA.

In this tutorial I'm going to set up centralized logging and monitoring for my nodes using Grafana, Prometheus, and Loki. Agents on each host (node_exporter and Promtail) will send monitoring data, systemd logs, and Docker container logs to Prometheus and Loki from all of the nodes in my homelab.

Once we have all of this data aggregated, we can use some excellent tools in Grafana:

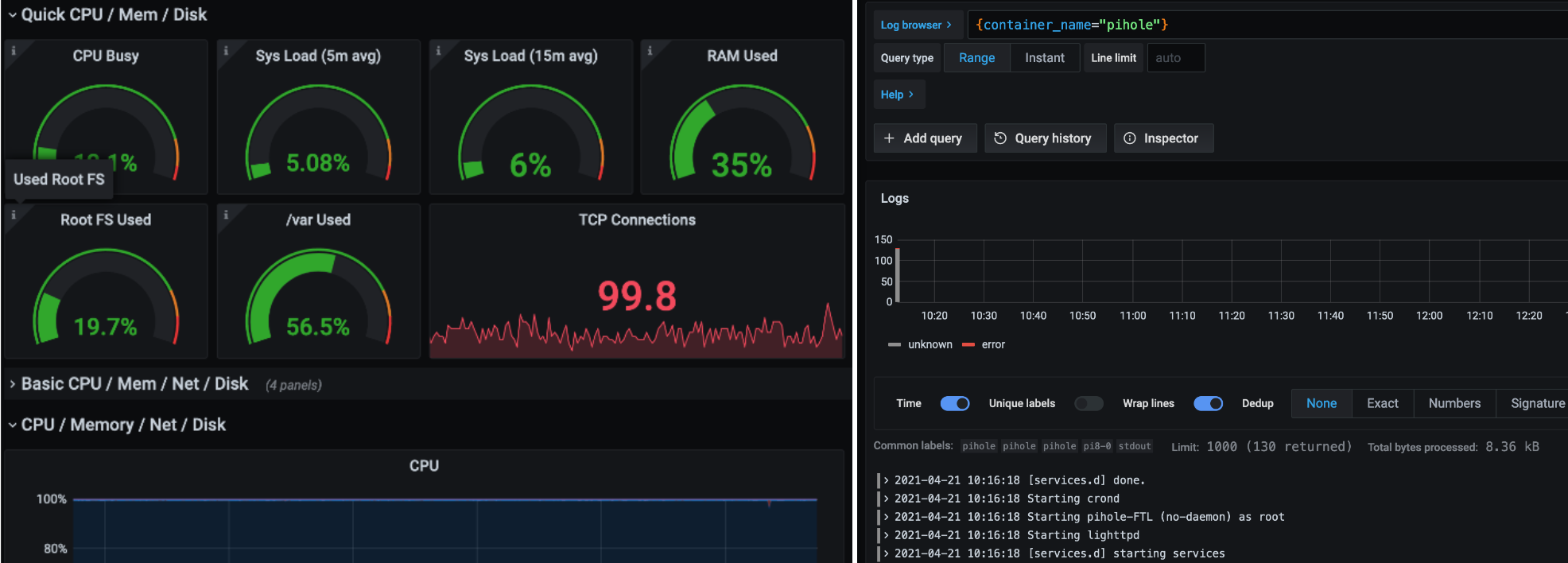

  • The node_exporter dashboard, to monitor node hardware and resource utilization
  • The Explore UI, for browsing system & Docker logs
  • And the alerting system in Grafana can be configured to send alerts to your phone via Telegram

Fair warning: This is a chunky project with a lot of steps. I'd suggest devoting a weekend afternoon to it.


Here's the setup:


The arrows always point from a client to a server. Notice that Prometheus acts as a server in relation to Grafana, and a client in relation to node_exporter. So, it's going to need both a client and a server TLS certificate.

Here are the goals for this setup:

  • Mutual TLS between all services. We really like mTLS! It's what we do! A lot of these services use HTTP and bind to 0.0.0.0 with no authentication by default, so we have our work cut out for us.
  • Automated certificate management. There's three pieces to this:
    • Automated Renewal of the TLS certificates. The step-ca server issues short-lived (24 hour) TLS certificates by default, so we'll need a timer to renew them every 16 hours.
    • Automated Deployment of the renewed certificate (eg. restart a service, call an API, whatever is needed to get the certificate deployed).
    • Health Checks in case either the renewal or the deployment fail. (I don't want a critical service interruption in my tiny homelab!)

Before you begin

  • You will need a step-ca Certificate Authority to issue certificates. You can build a tiny CA using a Raspberry Pi, or just follow our Getting Started guide to set one up on any machine. The CA should have an ACME provisioner configured—that's how we're going to get all of our certificates. ACME is the protocol used by Let's Encrypt.
    • In case you haven't already, configure your local system or web browser to trust your CA, so you don't get certificate warnings when accessing your Grafana dashboard. See step certificate install for details.
  • DNS is important when working with certificates and ACME. In my homelab, I've set up DNS CNAMEs for Grafana, Loki, and Prometheus (grafana.internal, loki.internal, and prometheus.internal), so that I can issue server certificates with those DNS names on them.

Prerequisites for every host:

  • You'll need step and jq installed, and systemd version 219 or higher.

  • You'll need to bootstrap your CA so you can get certificates.

    Follow the directions in Accessing Your Certificate Authority to bootstrap your CA. When you're done, you should have your CA certificate in $HOME/.step/certs/root_ca.crt, and a $HOME/.step/config/defaults.json file containing your CA connection details.

  • Once you're bootstrapped your CA your own user, copy your step configuration directory to /etc/step-ca so that root can use it for automation:

    $ sudo cp -R ~/.step /etc/step-ca

  • Download our systemd certificate renewal templates.

    We will leverage systemd timers to automatically renew the SSL certificates on every host, every day. For background on how this works, read our documentation section about renewal using systemd timers.

    Download the cert-renewer@.service and cert-renewer@.timer systemd templates into /etc/systemd/system:

    $ curl -sSLf https://files.smallstep.com/cert-renewer%40.timer | sudo tee /etc/systemd/system/cert-renewer@.timer
$ curl -sSLf https://files.smallstep.com/cert-renewer%40.service | sudo tee /etc/systemd/system/cert-renewer@.service
$ sudo systemctl daemon-reload

    (Take a look at these two files; you may need to adjust them if you have a newer version of systemd.)

    The host is now prepped to use service-specific renewal timers.

Order of operations

We're going to do this from the bottom up:

  • First we'll set up the data collection agents: node_exporter, Promtail, and Loki's Docker logging driver on a single target host.
  • Then we'll set up Prometheus and Loki servers
  • Finally, we'll set up and configure the Grafana server

Host setup

Repeat this host setup process for every host you want to monitor. Every host will need to run node_exporter, Promtail, and Loki's Docker logging driver. The host we're setting up in this example is called lando.internal; change the hostname in the commands below to fit your setup.

node_exporter

Install It

node_exporter producers machine-level metrics for Prometheus. It's a single binary. Download it for your platform, expand it, and copy it into /usr/bin.

Configure TLS

Now create a /etc/node_exporter/web-config.yml configuration file, with the following contents:

tls_server_config:
  # Certificate and key files for server to use to authenticate to client.
  cert_file: "/etc/node_exporter/server.crt"
  key_file: "/etc/node_exporter/server.key"
  # Enforce mutual TLS.
  # For more detail on clientAuth options: [ClientAuthType](https://golang.org/pkg/crypto/tls/#ClientAuthType)
  client_auth_type: "RequireAndVerifyClientCert"
  # CA certificate for client certificate authentication to the server.
  client_ca_file: "/etc/node_exporter/root_ca.crt"

Mutual TLS happens when we have certificate authentication in both directions. Here's what these TLS settings mean:

  • Authenticating node_exporter to Prometheus: The cert_file and key_file are the server certificate and key that node_exporter will offer to Prometheus (which is a client, relative to node_exporter). Prometheus will refuse to connect if this certificate isn't valid.
  • Authenticating Prometheus to node_exporter: The client CA certificate (client_ca_file) ensures that node_exporter will require Prometheus to offer a server certificate issued by the CA.

Get a certificate

Let's put our certificate files in place and create a service user that will run node_exporter (and, later, Promtail):

$ cd /etc/node_exporter
$ sudo -E step ca certificate lando.internal server.crt server.key --provisioner acme
✔ Provisioner: acme (ACME)
Using Standalone Mode HTTP challenge to validate lando.internal .. done!
Waiting for Order to be 'ready' for finalization .. done!
Finalizing Order .. done!
✔ Certificate: /etc/node_exporter/server.crt
✔ Private Key: /etc/node_exporter/server.key
$ sudo -E step ca root root_ca.crt
$ sudo useradd --system --home /etc/node_exporter --groups systemd-journal --shell /bin/false prometheus
$ sudo chown -R prometheus:prometheus /etc/node_exporter

I'm using the ACME provisioner here, and I have a local DNS server for my .internal zone. If you don't have a DNS zone for your homelab, or you have trouble using the ACME provisioner to get a certificate, you can always use the password-based JWK provisioner instead.

Start node_exporter

Now we'll get node_exporter running with systemd, and have it start on system startup.

Run systemctl edit --full --force node_exporter.service, and add the following contents:

[Unit]
Description=Prometheus node_exporter
Wants=network-online.target
After=network-online.target
[Service]
User=prometheus
Group=prometheus
Type=simple
ExecStart=/usr/bin/node_exporter --web.config="/etc/node_exporter/web-config.yml"
[Install]
WantedBy=multi-user.target

Now start node_exporter with systemctl enable --now node_exporter.

You should see from systemctl status node_exporter that it's running and TLS is enabled.

Automate Certificate Renewal

Now let's create a renewer for node_exporter:

$ sudo systemctl edit cert-renewer@node_exporter.service

Add the following configuration:

[Service]
Environment=CERT_LOCATION=/etc/node_exporter/server.crt KEY_LOCATION=/etc/node_exporter/server.key

This tells the renewer which SSL certificate files to update for node_exporter.

Now we'll enable the timer to renew the certificate every day:

$ sudo systemctl enable --now cert-renewer@node_exporter.timer

The certificate will renew about every 16 hours. Check the journal for cert-renewer@node_exporter.service, and the output of systemctl list-timers to make sure the timer and renewal is working properly:

# sudo systemctl list-timers
NEXT                        LEFT          LAST                        PASSED       UNIT                               ACTIVATES
Wed 2021-04-28 16:34:28 PDT 3min 51s left Wed 2021-04-28 16:26:14 PDT 4min 22s ago cert-renewer@node_exporter.timer   cert-renewer@node_exporter.service
...

Add a Renewal Health Check

It's helpful to know when certificate renewals aren't working properly. For this, we can use healthchecks.io.

Each of these renewal services we create on each host will need its own Healtchecks URL. If certificate renewal breaks for any reason, you can get a DM on Telegram from Healthchecks.

Once you have created a Healthchecks URL for node_exporter on this host, run sudo systemctl edit cert-renewer@node_exporter.service again and append the following line, filling in your own ping URL:

ExecStartPost=curl -s -m 10 --retry 5 https://hc-ping.com/[your-healthchecks-check-code]

Finally, reload your systemd configuration with systemctl daemon-reload.

Promtail

Promtail acts as a log agent on every host, gathering logs and sending them to Loki. Here, we'll configure it with to ship systemd journal logs to Loki.

Install it

Download Promtail from the releases page on GitHub and unzip it. Copy the binary to /usr/bin.

Configure TLS

Make a directory /etc/promtail and add our Promtail configuration (promtail.yml):

server:
  disable: true
positions:
  filename: /tmp/positions.yaml
clients:
  - url: https://loki.internal:3101/loki/api/v1/push
    tls_config:
      ca_file: /etc/promtail/root_ca.crt
      cert_file: /etc/promtail/promtail.crt
      key_file: /etc/promtail/promtail.key
scrape_configs:
  - job_name: journal
    journal:
      max_age: 24h
      labels:
        job: systemd-journal
    relabel_configs:
      - source_labels: ['__journal__systemd_unit']
        target_label: 'unit'
      - source_labels: ['__journal__systemd_priority_keyword']
        target_label: 'priority'
      - source_labels: ['__journal__hostname']
        target_label: 'host'

The only thing you'll need to change here is the url. It should point to the DNS name where you'll host your Loki instance. (We'll set up Loki below.)

Get a Certificate

Now we'll make sure Promtail has the SSL certificate files it needs. We'll reuse the prometheus service user we already created above.

Run the following:

$ cd /etc/promtail
$ sudo -E step ca certificate lando.internal promtail.crt promtail.key --provisioner acme
✔ Provisioner: acme (ACME)
Using Standalone Mode HTTP challenge to validate lando.internal .. done!
Waiting for Order to be 'ready' for finalization .. done!
Finalizing Order .. done!
✔ Certificate: /etc/promtail/server.crt
✔ Private Key: /etc/promtail/server.key
$ sudo -E step ca root root_ca.crt
$ sudo chown -R prometheus:prometheus /etc/promtail

Start Promtail

We're doing the same thing here as we did for node_exporter.

Now we'll get Promtail running with systemd, and have it start on system startup. When we first start it, it will fail to connect to our Loki instance because it doesn't exist yet. That's OK for now.

We'll need a systemd service unit for Promtail. Run sudo systemctl edit --full --force promtail.service, and add the following:

[Unit]
Description=Promtail service
After=network.target
[Service]
Type=simple
User=prometheus
Group=prometheus
ExecStart=/usr/bin/promtail -config.file /etc/promtail/promtail.yml
[Install]
WantedBy=multi-user.target

Now run sudo systemctl enable --now promtail.service

Automate Certificate Renewal

We're doing the same thing here as we did for node_exporter.

Run sudo systemctl edit cert-renewer@promtail.service and add the following:

[Service]
Environment=CERT_LOCATION=/etc/promtail/promtail.crt KEY_LOCATION=/etc/promtail/promtail.key
; Optional. If you're using Healthchecks, fill in the ping URL here:
ExecStartPost=curl -s -m 10 --retry 5 https://hc-ping.com/[healthchecks-check-code]

Now we'll enable the timer:

$ sudo systemctl enable --now cert-renewer@promtail.timer

Check the journal for cert-renewer@promtail.service, and check the output of systemctl list-timers to make sure renewal is working properly.

Loki Docker Logging Driver

If your host uses Docker, the Loki Docker Logging Driver will ship all of your container logs to Loki.

Install It

Follow the directions from this page to install the Docker driver for Loki.

For my Raspberry Pi hosts, I needed to install the arm-v7 version of the driver:

docker plugin install grafana/loki-docker-driver:arm-v7 --alias loki --grant-all-permissions

Configure TLS

Edit the /etc/docker/daemon.json defaults to use the Loki driver:

{
	"log-driver": "loki",
	"log-opts": {
		"loki-url": "https://loki.internal:3101/loki/api/v1/push",
		"loki-batch-size": "400",
		"loki-tls-ca-file": "/etc/docker/root_ca.crt",
		"loki-tls-cert-file": "/etc/docker/loki.crt",
		"loki-tls-key-file": "/etc/docker/loki.key"
	}
}

Get a Client Certificate

Deploying a certificate to this Docker plugin is not straightforward. The filenames referenced in the above config are inside the plugin container, not on the host!

According to this issue, the easiest way to deploy the certificate files is to put them into /var/lib/docker/plugins/$PLUGIN_ID/roofts/. Where $PLUGIN_ID will be shown by running docker plugin inspect loki | jq -r '.[0].Id'.

Run the following:

$ CERT_DIR=/var/lib/docker/plugins/$(docker plugin inspect loki | jq -r '.[0].Id')/rootfs/etc/docker
$ echo $CERT_DIR
/var/lib/docker/plugins/4d390e97df03c9d860334ef8b4606ca681f4c2da7eac9d15424399339f6fb6e0/rootfs/etc/docker
$ sudo mkdir -p $CERT_DIR
$ sudo -E step ca certificate lando.internal /etc/docker/loki.crt /etc/docker/loki.key --provisioner acme
$ sudo -E step ca root /etc/docker/root_ca.crt
$ sudo cp /etc/docker/loki.crt /etc/docker/loki.key /etc/docker/root_ca.crt $CERT_DIR

Now restart Docker so it picks up its new configuration.

Automate Certificate Renewal

The renewal service is a bit trickier for the Loki Docker Driver, because we have to deploy the renewed certificate files to the container directory.

Run sudo systemctl edit cert-renewer@loki-docker-driver.service and add the following:

[Service]
Environment=CERT_LOCATION=/etc/docker/loki.crt KEY_LOCATION=/etc/docker/loki.key
ExecStartPost=/bin/env bash -c 'cp $CERT_LOCATION $KEY_LOCATION /var/lib/docker/plugins/$(docker plugin inspect loki |
jq -r '.[0].Id')/rootfs/etc/docker'
; Optional. If you're using Healthchecks, fill in the ping URL here:
ExecStartPost=curl -s -m 10 --retry 5 https://hc-ping.com/[healthchecks-check-code]

Now we'll enable the timer:

$ sudo systemctl enable --now cert-renewer@loki-docker-driver.timer

That's all for host setup.

Set up Core Services

Now let's move on to the core services. You'll want these on their own VM.

Loki

We'll start by setting up Loki, a log aggregation server & database.

Loki acts as a server to all of your hosts, receiving their logs, and a client to Grafana.

Install It

Loki is just a single binary. To run it, download the binary for your platform, and put it in /usr/bin.

Run systemctl edit --full --force loki.service, and add the following:

[Unit]
Description=Loki service
After=network.target
[Service]
Type=simple
User=loki
Group=loki
ExecStart=/usr/bin/loki -config.file /etc/loki/loki.yml
[Install]
WantedBy=multi-user.target

Unfortunately, Loki doesn't support mutual TLS yet. But, everything that will connect to Loki does support mutual TLS.

So, once we install Prometheus, we're going to put a reverse proxy in front of Loki and Prometheus, and add TLS in the proxy.

I made a special config (Gist) that binds Loki's HTTP listener to localhost only, instead of 0.0.0.0 (the default). You'll need a loki user, and the config file:

$ sudo mkdir /etc/loki
$ curl -sSLf https://gist.githubusercontent.com/tashian/6824005c05a10fca2262522f2ab4ff71/raw/de3e58c7fc03462a8f60a3314c07ffbf9182a287/loki.yml | sudo tee /etc/loki/loki.yml
$ sudo useradd --system --home /etc/loki --shell /bin/false loki
$ sudo chown -R loki:loki /etc/loki
$ sudo systemctl enable --now loki.service

Prometheus

Prometheus is a monitoring system and database. It's a chunky piece of software and there are entire courses devoted to learning it. But, today we're just going to configure it to scrape our node_exporter targets.

Install It

Download Prometheus for your platform from the release page:

$ sudo mkdir /etc/prometheus
$ sudo mkdir /var/lib/prometheus
$ curl -LO https://github.com/prometheus/prometheus/releases/download/v2.26.0/prometheus-2.26.0.linux-amd64.tar.gz
$ tar xzf prometheus-2.26.0.linux-amd64.tar.gz
$ prometheus-2.26.0.linux-amd64/prometheus --version
prometheus, version 2.26.0 (branch: HEAD, revision: 3cafc58827d1ebd1a67749f88be4218f0bab3d8d)
  build user:       root@a67cafebe6d0
  build date:       20210331-11:56:23
  go version:       go1.16.2
  platform:         linux/amd64
$ sudo cp prometheus-2.26.0.linux-amd64/prometheus /usr/bin
$ sudo cp -r prometheus-2.26.0.linux-amd64/consoles prometheus-2.26.0.linux-amd64/console_libraries /etc/prometheus/

Here's a systemd unit file. Run systemctl edit --full --force prometheus.service, and add the following:

[Unit]
Description=Prometheus
Wants=network-online.target
After=network-online.target
[Service]
User=prometheus
Group=prometheus
Type=simple
ExecStart=/usr/bin/prometheus \
  --web.listen-address=127.0.0.1:9090 \
  --config.file="/etc/prometheus/prometheus.yml" \
  --storage.tsdb.path="/var/lib/prometheus" \
  --web.console.templates="/etc/prometheus/consoles" \
  --web.console.libraries="/etc/prometheus/console_libraries" \
  --web.enable-lifecycle
[Install]
WantedBy=multi-user.target

Don't start the service quite yet; we still need to configure our targets (using file service discovery) and a client certificate.

Configure TLS (client-side)

Like Loki, Prometheus doesn't support TLS as a server. But it does support TLS as a client connecting to scrape targets like node_exporter. I've written a Prometheus config file (Gist) that sets TLS options. Let's put the config file into place, get a client certificate, and add a service user for Prometheus:

$ curl -sSLf https://gist.githubusercontent.com/tashian/4e9ab9c5dcecc70946a9ae2a0e0044c3/raw/7679649a052f334900b467380566c58a6a8bfac5/prometheus.yml | sudo tee /etc/prometheus/prometheus.yml
$ sudo mkdir /etc/prometheus/targets
$ sudo tee /etc/prometheus/targets/nodes.json > /dev/null <<'EOF'
[
  {
    "labels": {
      "job": "nodes"
    },
    "targets": [
       "lando.internal:9100"
    ]
  }
]
EOF
$ sudo -E step ca certificate prometheus.internal /etc/prometheus/client.crt /etc/prometheus/client.key --provisioner acme
✔ Provisioner: acme (ACME)
Using Standalone Mode HTTP challenge to validate prometheus.internal .. done!
Waiting for Order to be 'ready' for finalization .. done!
Finalizing Order .. done!
✔ Certificate: /etc/prometheus/client.crt
✔ Private Key: /etc/prometheus/client.key
$ sudo -E step ca root /etc/prometheus/root_ca.crt
$ sudo useradd --system --home /etc/prometheus --shell /bin/false prometheus
$ sudo chown -R prometheus:prometheus /etc/prometheus /var/lib/prometheus
$ sudo systemctl enable --now prometheus.service

You'll need to change the "targets" list to list all of your node_exporter hosts.

Prometheus should now be running and scraping your node_explorer targets with mTLS. And you can add additional hosts to the nodes.json targets list without restarting Prometheus.

Automate Certificate Renewal (client-side)

Run sudo systemctl edit cert-renewer@prometheus.service and add the following:

[Service]
Environment=CERT_LOCATION=/etc/prometheus/client.crt KEY_LOCATION=/etc/prometheus/client.key
; Optional. If you're using Healthchecks, fill in the ping URL here:
ExecStartPost=curl -s -m 10 --retry 5 https://hc-ping.com/[healthchecks-check-code]

Now we'll enable the timer:

$ sudo systemctl enable --now cert-renewer@prometheus.timer

Configure TLS With Caddy (server-side)

Caddy is a web server and reverse proxy known for its automatic HTTPS support. It will get certificates from the CA using ACME, and it will renew them for us when needed.

Install Caddy using their installation instructions, which will create and start a caddy.service for us.

Now place the following in /etc/caddy/Caddyfile:

{
  email carl@smallstep.com
  acme_ca https://ca.internal:4443/acme/acme/directory
  acme_ca_root /etc/caddy/root_ca.crt
}
# Loki
https://loki.internal:3101 {
   reverse_proxy http://localhost:3100
   tls {
     client_auth {
       trusted_ca_cert_file /etc/caddy/root_ca.crt
     }
   }
}
# Prometheus
https://prometheus.internal:9091 {
   reverse_proxy http://localhost:9090
   tls {
     client_auth {
       trusted_ca_cert_file /etc/caddy/root_ca.crt
     }
  }
}
  • Change the acme_ca, email, and adjust the externally-facing Loki and Prometheus HTTPS URLs to match your setup.
  • Be sure to put the root_ca.crt into /etc/caddy, too. (sudo -E step ca root /etc/caddy/root_ca.crt)
  • Finally, chown -R caddy:caddy /etc/caddy and restart Caddy.

When Caddy starts up, it will request ACME certificates from your CA. You can check its status with sudo journalctl -fu caddy.service. Once Caddy is up and running with certificates, it will authenticate all connecting clients to be sure they have certificates signed by the root CA, /etc/caddy/root_ca.crt.

There's a small security tradeoff here: Anyone who has access to the local system can still access Loki and Prometheus without TLS authentication. But, since these services doesn't support TLS yet, this is the best we can do for now.

Set up Grafana

Grafana can live on its own VM or with Loki and Prometheus.

In this section we'll install Grafana and configure its server TLS, for accessing its dashboard.

You can set up Grafana on the same host as Loki and Prometheus, or on its own host.

Install it

Install Grafana using the OSS release instructions on grafana.com.

Once it's installed, you should see that there's a systemd service called grafana-server.service:

$ sudo systemctl daemon-reload
$ sudo systemctl enable --now grafana-server
$ sudo systemctl status grafana-server
● grafana-server.service - Grafana instance
     Loaded: loaded (/lib/systemd/system/grafana-server.service; enabled; vendor preset: enabled)
     Active: active (running) since Wed 2021-04-28 10:36:37 PDT; 6h ago
       Docs: http://docs.grafana.org
   Main PID: 791 (grafana-server)
      Tasks: 18 (limit: 38081)
     Memory: 71.4M
     CGroup: /system.slice/grafana-server.service
             └─791 /usr/sbin/grafana-server --config=/etc/grafana/grafana.ini --pidfile=/var/run/grafana/grafana-server.pid --packaging=deb cfg:default.paths.logs=/var/log/grafana cfg:default.pa>
Apr 28 10:36:37 nuc grafana-server[791]: {"@level":"debug","@message":"datasource: registering query type handler","@timestamp":"2021-04-28T10:36:37.349092-07:00","queryType":"node_graph"}
...

Configure TLS (server-side)

Now let's get a TLS certificate for Grafana.

$ cd /etc/grafana
$ sudo systemctl stop caddy
$ sudo -E step ca certificate grafana.internal server.crt server.key --san grafana --san grafana.internal --provisioner acme
✔ Provisioner: acme (ACME)
Using Standalone Mode HTTP challenge to validate grafana .. done!
Using Standalone Mode HTTP challenge to validate grafana.internal .. done!
Waiting for Order to be 'ready' for finalization .. done!
Finalizing Order .. done!
✔ Certificate: /etc/grafana/server.crt
✔ Private Key: /etc/grafana/server.key
$ sudo systemctl start caddy
$ sudo chown grafana:grafana server.key server.crt

You should change the certificate subject and SANs (Subject Alternative Names) as needed. Note that if you use the --san flag in step ca certificate, you'll have to supply the main DNS name you want to use twice: Once as a positional parameter for the certificate subject, and again with a --san flag.

With our certificate in hand, let's enable TLS in Grafana. Set the following values in the Grafana config (/etc/grafana/grafana.ini):

[server]
protocol = https
cert_file = /etc/grafana/server.crt
cert_key = /etc/grafana/server.key

Now restart Grafana with systemctl restart grafana-server and you should be able to sign in at https://grafana.internal:3000 (admin is the default username and password) and change your password.

Automate Certificate Renewal (server-side)

Run sudo systemctl edit cert-renewer@grafana-server.service and add the following:

[Service]
Environment=CERT_LOCATION=/etc/grafana/server.crt KEY_LOCATION=/etc/grafana/server.key
; Optional. If you're using Healthchecks, fill in the ping URL here:
ExecStartPost=curl -s -m 10 --retry 5 https://hc-ping.com/[healthchecks-check-code]

Now we'll enable the timer:

$ sudo systemctl enable --now cert-renewer@loki-docker-driver.timer

That's all for host setup.

Configure TLS (client-side)

Grafana also needs client certificates for connecting to Prometheus and Loki!

There's no config file for this; these certificates are configured and stored in Grafana's database, and the way to automate deployment is with Grafana's API.

Create an API Key

In the Grafana UI, go to Settings -> API Keys and create an API key for yourself. Use the Role of "Admin", and save it.

Grafana will give you a curl command for testing—but it won't work, you'll get a certificate error at first. Add --cacert <(step ca root) to the curl command, to get curl to trust your CA, and you should see some output.

Did that work? Great. Hold onto that bearer token.

Create Data Sources

Now let's set up Grafana's data source for Loki.

In this step we'll get a certificate for the data sources, add Loki and Prometheus data source to Grafana, and set up some files that we'll reuse later to automate renewal:

$ cd /etc/grafana
$ sudo -E step ca certificate grafana.internal datasource.crt datasource.key --provisioner acme
$ sudo mkdir -p /etc/systemd/system/cert-renewer@grafana-datasources.service.d
$ cd /etc/systemd/system/cert-renewer@grafana-datasources.service.d
$ sudo tee loki_datasource.jq > /dev/null <<'EOF'
{
  "name": "Loki",
  "type": "loki",
  "access": "proxy",
  "url": "https://loki.internal:3101",
  "jsonData": {
    "tlsAuth": true,
    "tlsAuthWithCACert": true
  },
  "secureJsonData": {
    "tlsCACert": $ca_cert,
    "tlsClientCert": $client_cert,
    "tlsClientKey": $client_key
  },
}
EOF
$ sudo tee api_headers > /dev/null <<'EOF'
Content-Type: application/json
Authorization: Bearer eyJrIj...CJpZCI6MX0=
EOF
$ sudo jq -n \
             --rawfile ca_cert $(step path)/certs/root_ca.crt \
             --rawfile client_cert /etc/grafana/datasource.crt \
             --rawfile client_key /etc/grafana/datasource.key \
             -f loki_datasource.jq | curl -sS -X POST \
      -H @api_headers  \
      -d @- \
      --cacert $(step path)/certs/root_ca.crt  \
      https://grafana.internal:3000/api/datasources

Change the URLs and bearer token to fit your setup.

jq does the heavy lifting here:

  • Templating for the POST data
  • When the certs are injected into the template, jq will convert newlines to \n because that’s what JSON needs
  • Certs are nicely pulled into jq variables from files using bash sugar

I wrote a story about how I arrived at the fancy command string above (jq | curl) in another post: How to Handle Secrets on the Command Line. We'll reuse this pattern in the certificate renewer service.

And for Prometheus:

$ cd /etc/systemd/system/cert-renewer@grafana-datasources.service.d
$ sudo tee prometheus_datasource.jq > /dev/null <<'EOF'
{
  "name": "Prometheus",
  "type": "prometheus",
  "access": "proxy",
  "url": "https://prometheus.internal:9091",
  "jsonData": {
    "tlsAuth": true,
    "tlsAuthWithCACert": true
  },
  "secureJsonData": {
    "tlsCACert": $ca_cert,
    "tlsClientCert": $client_cert,
    "tlsClientKey": $client_key
  },
}
EOF
$ sudo jq -n \
             --rawfile ca_cert $(step path)/certs/root_ca.crt \
             --rawfile client_cert /etc/grafana/datasource.crt \
             --rawfile client_key /etc/grafana/datasource.key \
             -f prometheus_datasource.jq | curl -sS -X POST \
      -H @api_headers  \
      -d @- \
      --cacert $(step path)/certs/root_ca.crt  \
      https://grafana.internal:3000/api/datasources

Automate Certificate Renewal (client-side)

To automate client cert renewal in a running Grafana instance, we already have most of what we need. We just need a renewer service that edits the datasources we just created.

Run sudo systemctl edit cert-renewer@grafana-datasources.service and add the following:

[Service]
Environment=CERT_LOCATION=/etc/grafana/datasource.crt KEY_LOCATION=/etc/grafana/datasource.key
ExecStartPost=
ExecStartPost=/usr/bin/env bash -c 'jq -n \
             --rawfile ca_cert $STEPPATH/certs/root_ca.crt \
             --rawfile client_cert $CERT_LOCATION \
             --rawfile client_key $KEY_LOCATION \
             -f /etc/systemd/system/cert-renewer@grafana-datasources.service.d/loki_datasource.jq | curl -s -X PUT \
      -H @api_headers -d @- \
      --cacert $STEPPATH/certs/root_ca.crt \
      https://grafana.internal:3000/api/datasources/1 > /dev/null'
ExecStartPost=/usr/bin/env bash -c 'jq -n \
             --rawfile ca_cert $STEPPATH/certs/root_ca.crt \
             --rawfile client_cert $CERT_LOCATION \
             --rawfile client_key $KEY_LOCATION \
             -f /etc/systemd/system/cert-renewer@grafana-datasources.service.d/prometheus_datasource.jq | curl -s -X PUT \
      -H @api_headers -d @- \
      --cacert $STEPPATH/certs/root_ca.crt \
      https://grafana.internal:3000/api/datasources/2 > /dev/null'
; Optional. If you're using Healthchecks, fill in the ping URL here:
ExecStartPost=curl -s -m 10 --retry 5 https://hc-ping.com/[healtchecks-check-code]

Now we'll enable the timer:

$ sudo systemctl enable --now cert-renewer@grafana-datasources.timer

You're done!

Did you make it this far? Everything should be up and running at this point.

Here are some next steps:

  • Add the node_exporter dashboard

    In Grafana, import the node_exporter dashboard. Go to Dashboards -> Manage, choose Import, and enter "1860" in the ID. You'll get a nice dashboard for node_exporter!

  • Browser your Loki logs

    Go to the Explore tab in Grafana. The Log browser tab is the best way to get started with LogQL, the query language for Loki.

  • Add an alerting notification channel

    Go to Alerts -> Notification Channels and you can configure an integration there. There are many supported notifiers. Once you've got a notification channel set up, you can create alerts in Grafana.

Wrapping Up

Wow. It's a lot of setup, right?

These services are not trivial to set up in the first place. Add mutual TLS, certificate automation and deployment... it's a lot! Even with an ACME step-ca, the step CLI tool, and our certificate renewer service. Unfortunately, every service has a slightly different TLS configuration.

At Smallstep, we aim to make mutual TLS a lot easier to use for everyone, and that includes this sort of automation. As we continue to write tutorials and learn how TLS is really used out in the world, we're improving our tools so that mutual TLS between services can become a default—not an afterthought.

Carl Tashian (Website, LinkedIn) is an engineer, writer, exec coach, and startup all-rounder. He's currently an Offroad Engineer at Smallstep. He co-founded and built the engineering team at Trove, and he wrote the code that opens your Zipcar. He lives in San Francisco with his wife Siobhan and he loves to play the modular synthesizer 🎛️🎚️

Cli
Technical

Further Reading
